Product Details
＋

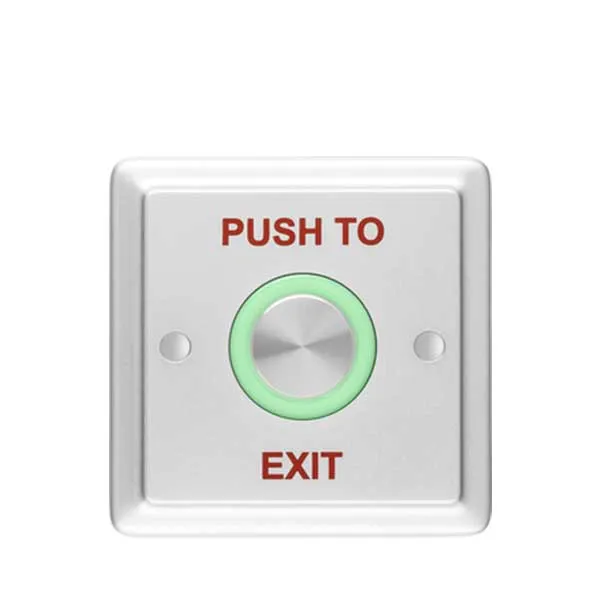

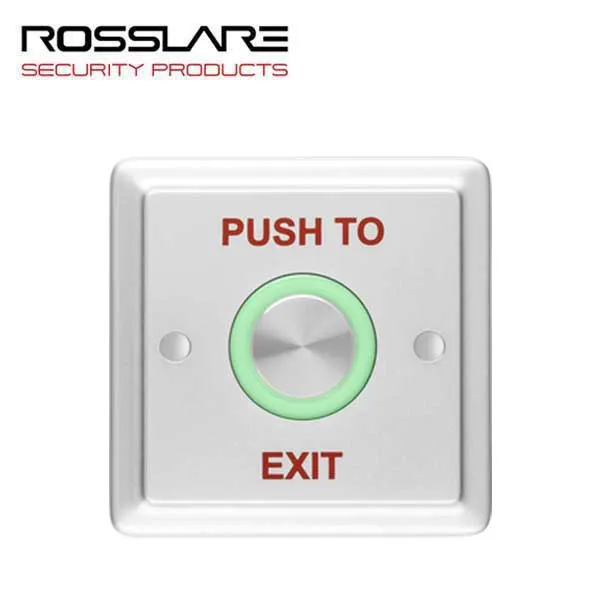

The EX-M04 is a sensitive piezoelectric button switch. The new access control switches are designed as flush mounting for US and UK electric boxes with piezoelectric technology. The switches have a red/green LED ring to display the switch status. The switches are designed as Request-to-Exit (REX) buttons for access control systems, direct activate electric strike, or magnet locks with up to 30 VDC and 1A.
Features:
- Solid state piezoelectric switch technology
- N.O. and N.C. relay pulse simply by the touch of a finger
- Output and Indication Toggle Option
- Adjustable Output and LED Indication Time of 1 to 60 Seconds
- Light Ring Status Indicator and Accidental Activation Hindrance
- Jumper Selectable Illumination Status Red Green, or No Illumination
Specifications:
| Type |
Piezo |
| Sensor / Switch Type |
N.O. |
| Operating Voltage |
8-30 VDC |
| Led Type |
Ring |
| IP Rating | IP65 |
| Dimensions | 92 x 92 x 10 mm (3.62 x 3.62 x 0.39 in.) |
| Operating Temperature | -10˚C to 50˚C (14˚F to 122˚F) |
| Storage Temperature | -20˚C to 60˚C (-4˚F to 140˚F) |
| Manufacturer's Warranty: | Limited Product Warranty |
