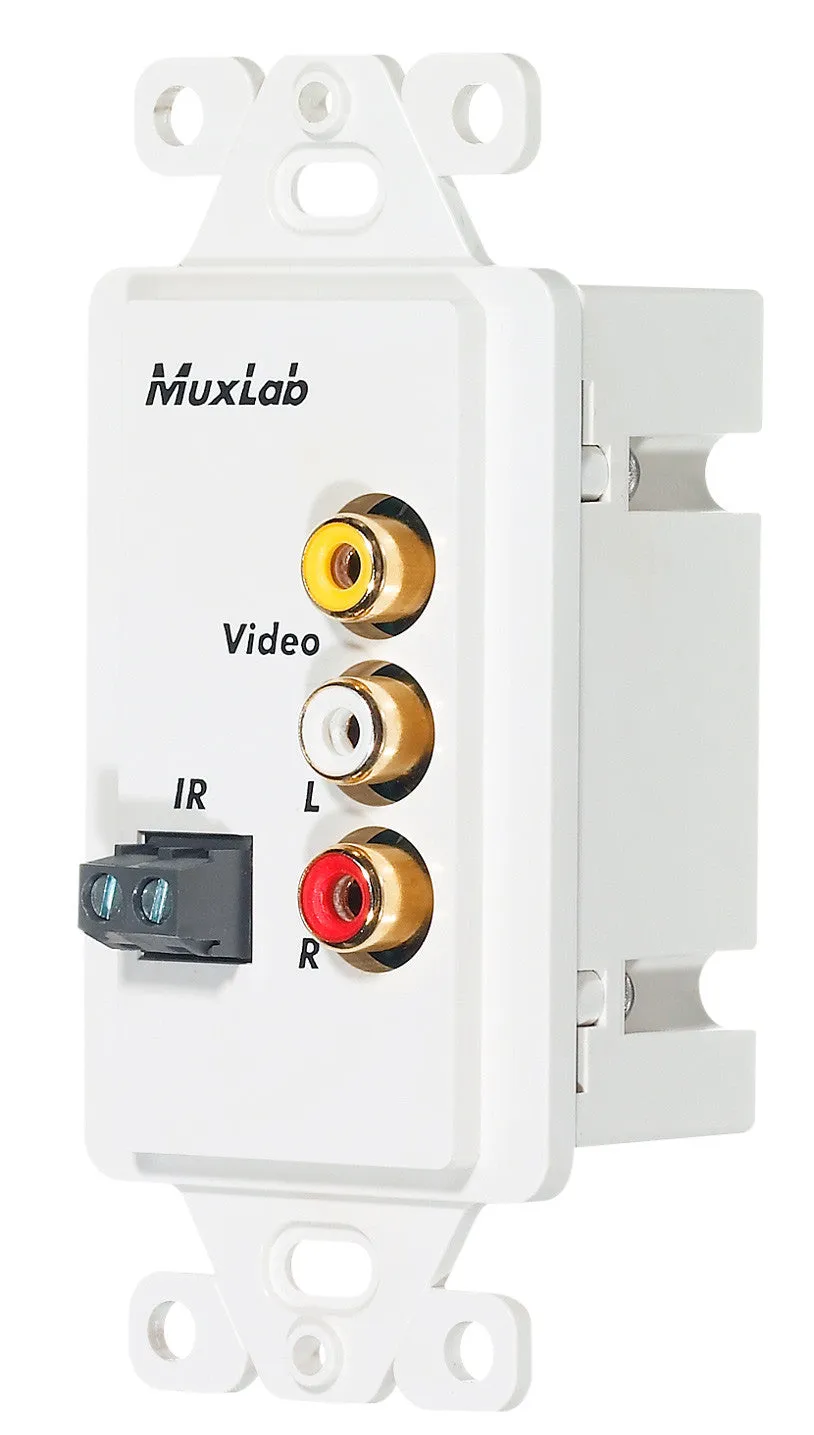

MuxLab 500049-WP-US Stereo AV/IR Pass-Thru Wall Balun

The Stereo AV/IR Pass-Thru Wall Balun(500049-WP-US) allows one (1) composite video,one (1) stereo audio and one (1) IR emitter signalto be transmitted via a single Cat5e/6 cable in apoint-to-point connection. The Stereo AV/IRPass-Thru Wall Balun features full audiobandwidth response for high fidelity applicationsand is Decora™ compatible.

The Stereo AV/IR Pass-Thru Balun works in pairsor in conjunction with the 500048 or 500049.Some of the applications are; classroom videodistribution, commercial and home audio/videosystems, hospital video training, videoconferencing, and video kiosks.

Features & Benefits

• Video up to 2,200 feet (670m) via Cat5e/6
• Audio up to 3,250 ft (990m) via Cat5e/6
• 20 Hz to 20 kHz audio bandwidth
• IR 2-wire emitter pass-thru on fourth twisted pair
• Built-in color-coded cable leads
• Compatible with Decora™ face plates
