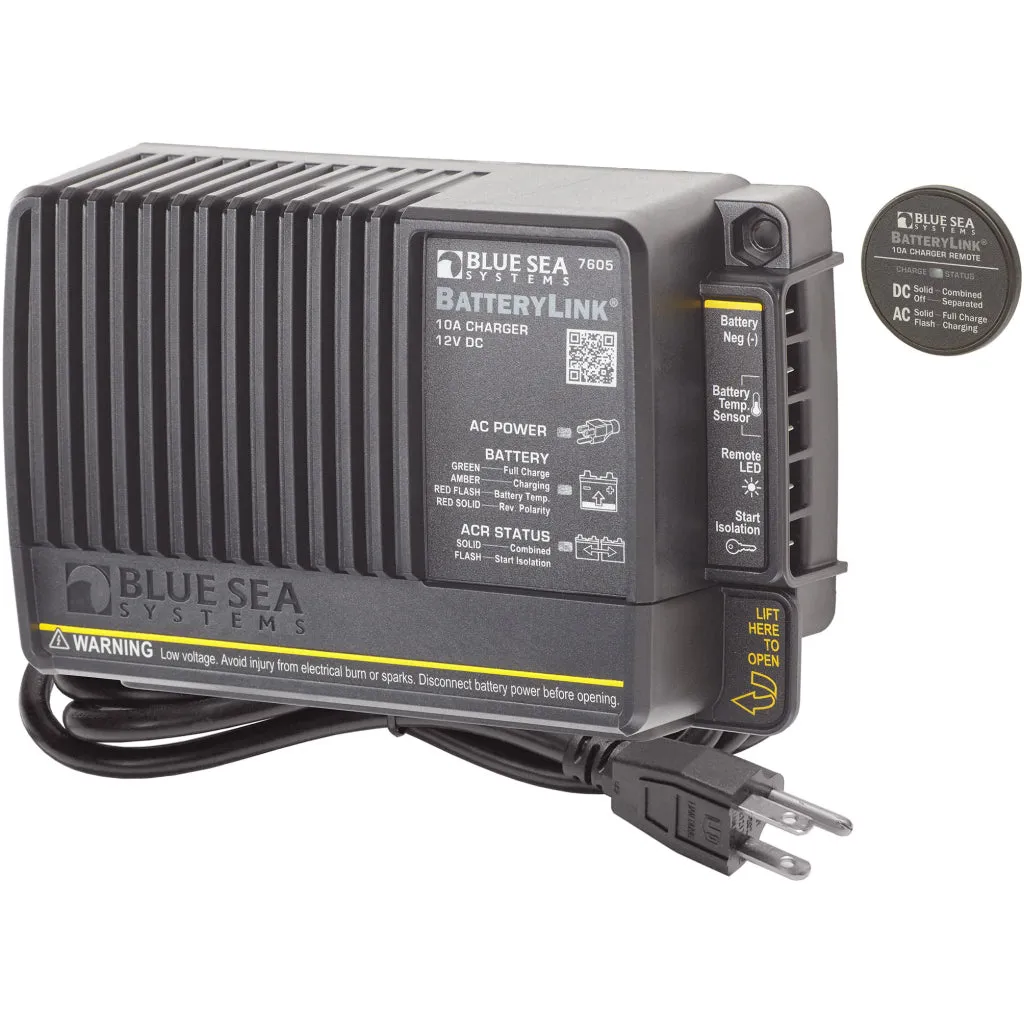

Item# 7605

Features:

• AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 10 Amp battery charger.
• DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 65A ACR.
• Battery Temperature Compensation prolongs battery life.
• Start isolation protects sensitive electronics from voltage sags and spikes.
• Includes LED remote indicator for charge status at the helm.
• Snap-on insulating cover.
• One-piece stainless flange nuts ensure safe and secure connections.

Specifications:

• Total Output Current:10A
• Nominal Voltage:12V DC
• Number of Outputs:
• 1 negative
• 2 positive
• Terminal Stud Torque:60 in-lb (6.78 Nm)
• Continuous Rating: 65A
• Intermittent Rating: 115A
• Universal AC Input Voltage:90-265V AC
• AC Input Frequency:50/60Hz
• Typical Float Voltage:13.5V DC
• Battery Types:
• AGM
• Flooded
• TPPL
• Cable Size to Meet Ratings:
• 10 AWG Negative Cable
• 6 AWG Positive Cable
• Maximum Battery CCA:850CCA
• Maximum Cable Size:1/0 AWG (50mm)
• Operating Current:
• 10mA
• 60mA
• Plug Style:North American: NEMA 5-15P
• Recommended Battery Bank Sizes:
• 120Ah Maximum
• 60Ah Minimum
• Terminal Stud Size:1/4"-20
• Combine 30 sec:13.5V
• Combine 2 Min:13.0V
• Open 10 sec:12.35V
• Open 30 sec: 12.75V
• Weight: 4.00lb (1.81 kg)
