• Sealed enclosure with one S2 Series 12" woofer
• MDF enclosure with carpet covering
• Carbon fiber/polypropylene cone with ceramic/polypropylene dust cap
• High-Amplitude Multi-Roll (HAMR) rubber surround

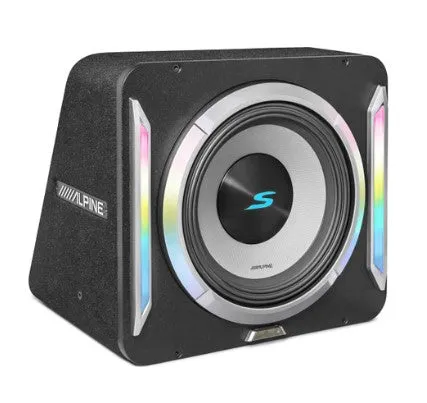

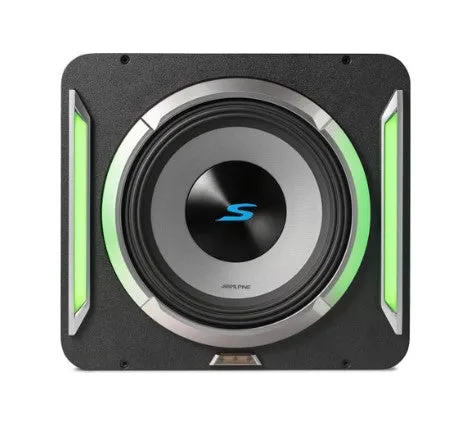

• Integrated RGB lighting bars
• Linkable to additional S2-SB12 enclosures with KTX-LK12 linking kit (sold separately)
• Includes twist-lock surround trim ring
• 2-ohm total impedance
• Power handling: 600 watts (1800 watts peak)
• Frequency response: 23-215 Hz
• Sensitivity: 86 dB
• Dimensions: 16.63"W x 15"H x 13.13"D1 x 6.25"D2

Good Looks, Great Bass

Alpine's PrismaLink S2-Series subwoofer enclosures combine great Alpine bass with stunning visual appeal. Integrated RGB lighting bars make your system look as good as it sounds while rugged built-in S2-Series subwoofers deliver the sonic goods. The rugged MDF enclosure with carpet covering stands up to the stresses of car life, and its wedge-shaped design allows it to fit in more places.

Lighting And Multi-Sub Options

The pre-wired dual RGB lighting bars can be controlled by the included wireless remote or through the screen of the Alpine ILX-W670 receiver (sold separately). You can link multiple S2-S12B enclosures with the optional KTX-LK12 bracket for a kaleidoscopic multi-sub system. For the final touch, a twist-lock mounting system makes it easy to add one of Alpine's specially-designed speaker grilles (sold separately).

Big Bass From a 12" Sub

This S2-SB12 features Alpine's S2-W12D4 subwoofer with dual 4-ohm voice coils wired for 2-ohm impedance. Its carbon fiber/polypropylene cone and HAMR multi-roll rubber surround deliver powerful bass. It handles up to 600 watts of RMS power (1800 watts peak), so you can feed it plenty of power.
