Product Details
＋
Overview

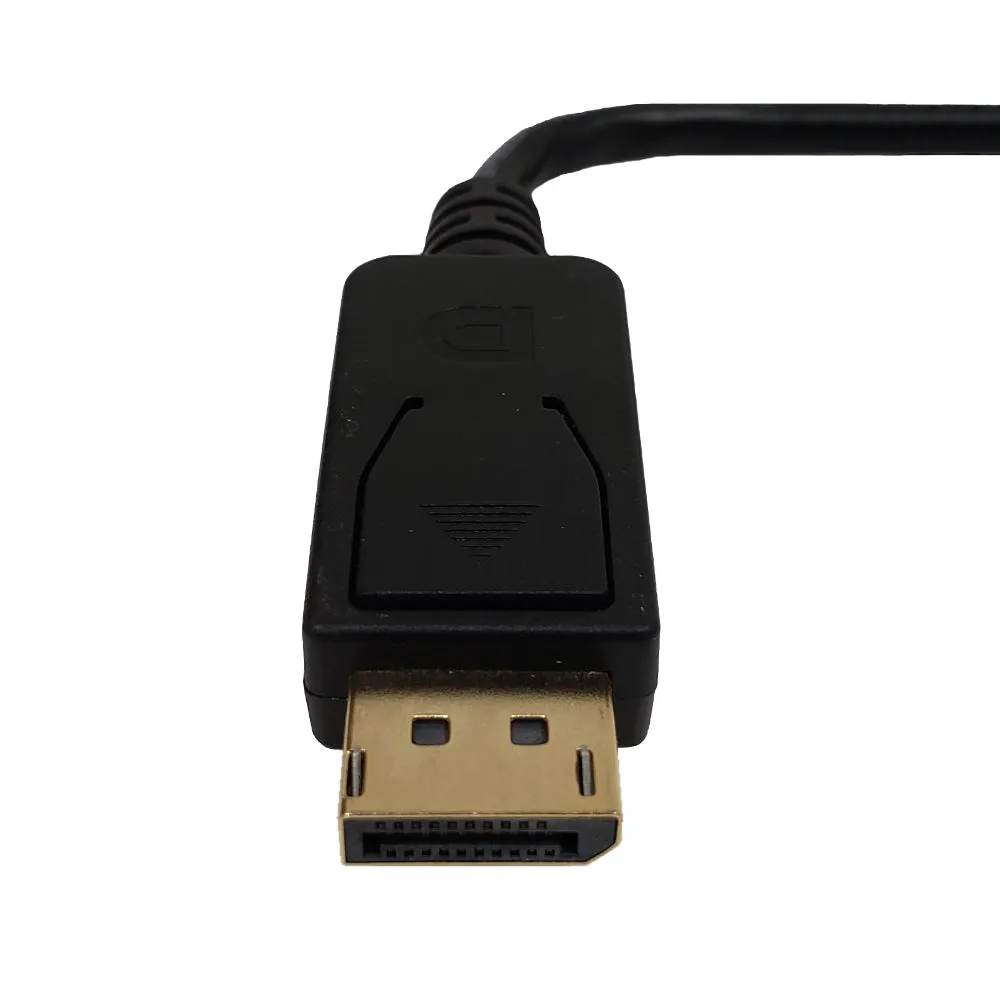

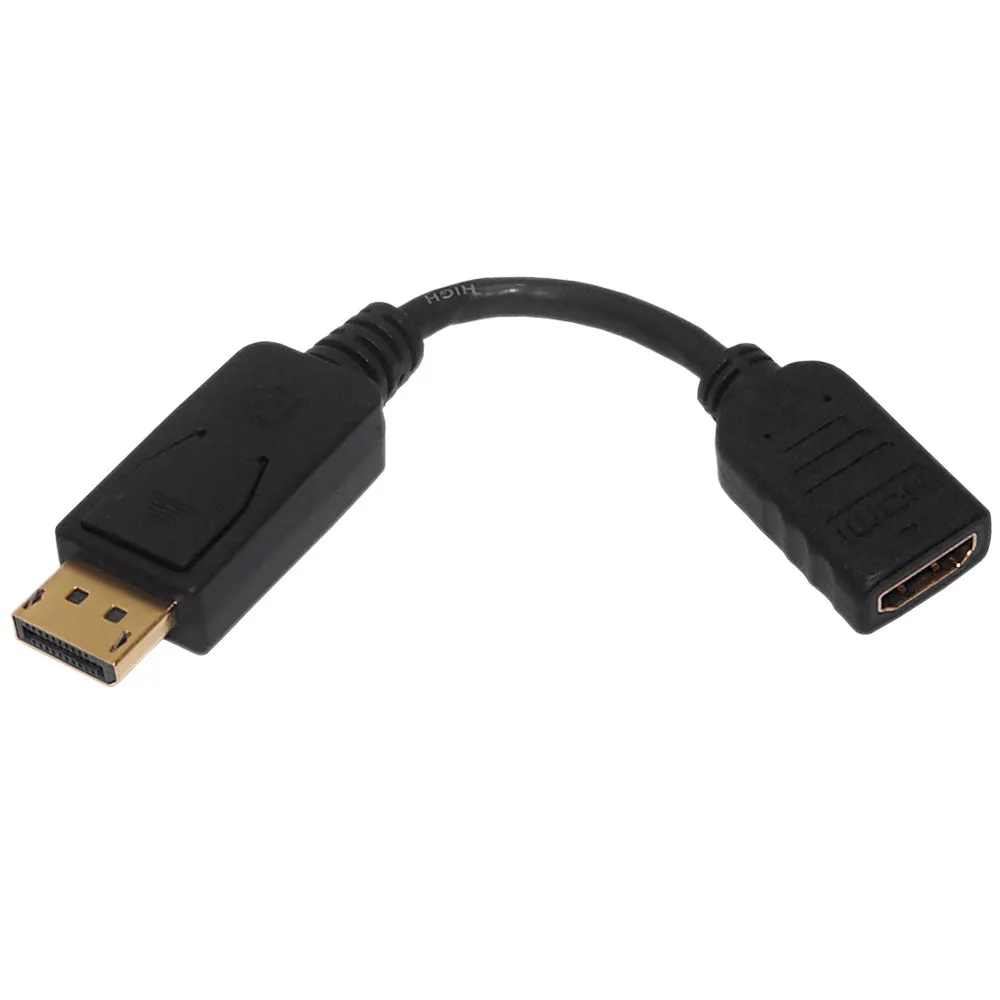

This adapter consists of a DisplayPort/Thunderbolt v1.1a male on one end and a HDMI female on the other. It is used to connect a DisplayPort source to an digital HDMI display. It does not work from a HDMI source to a DisplayPort monitor.
Supports Common Video ResolutionsThis adapter supports video resolutions up to 1080p. Supports Multiple Color FormatsThis adapter supports HDMI 12bit per channel (36bit all channel) deep color format. Used in Common InstancesThis adapter can be used in common instances - for example, connecting your PC to a TV. It can be used in settings such as data control centers, conference rooms, schools and corporate training environments. |
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connectors | |
| Connector A | DisplayPort Male v1.1a |
| Connector B | HDMI Female |
| Performance | |
| Resolution | HDMI highest video resolution (1080p) |
| DP Version | 1.1a |
| Bandwidth | HDMI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth |
| Supported Application | DisplayPort input and HDMI output |
| Color Supported | Support HDMI 12bit per channel (36bit all channel) deep color |
| Support | DisplayPort input and HDMI output |
| Audio | Supports uncompressed audio such as LPCM |
| Power | Powered from DisplayPort source |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.05 lbs [0.02 kg] |
